Outstanding Readability

Superior Reading Speed of 2D Codes and Bar Codes (Twice Conventional Model(1) Speeds)



Excellnt User Friendly Operation

Scanning Area Marker

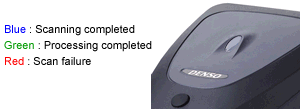

3 color Extra-bright LED

Easy to see scanner information

Vibrator Function

Scan completion confirmed with vibration

Adjustable Buzzer Volume

3 levels of buzzer volume to suit the surrounding environment



Versatile Reading Functions

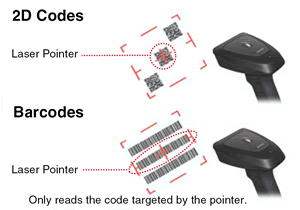

Target Pointer Mode

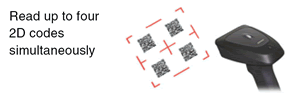

Read Multiple Codes Simultaneously

The GT10Q can read multiple codes within the reading area, such as continuous QR codes and multiple bar codes, in a single reading.

Barcode Reader

The GT10Q achieves high-speed reading equal to traditional linear readers



Drop Test Standard

High standard of impact resistance due to a new stronger body and a design which incorporates impact rubber for added protection.



Splash and Dust Proof to Meet IP54 Standards

Passes IEC International Standards Protection Class IP54(equivalent to JIS splash resistance). High level of protection for use in rugged environments.



One-touch Key Functions

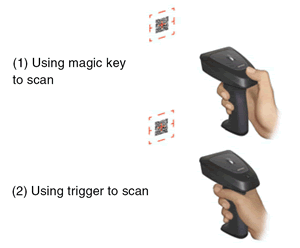

Choice of scanning method for user use

Code Discrimination

By registering two types of readable symbologies in the GT10, the magic key can toggle to avoid reading the incorrect codes, while in multiple reading code mode

Power ON/OFF Control

Scanner is on stand by when magic key is OFF. Scanning beings when magic key is(switched) ON.

Transmitting Designated Characters

Data to be transmitted (i.e operation start codes) can be setup beforehand when the magic key is ON.

Retransmit Scanned Data



Wide range of Functions

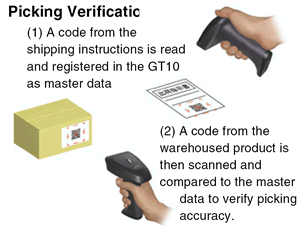

Code comparison

Determines if a code being scanned matches a master bar code redistered in the GT10Q.

Remote ON/OFF Function

Scanning can be turned ON/OFF via commands from a host computer.

Auto-sensing function

The auto-sensing function automatically begins scanning when a label is detected.

Programmed Data Formatting

Easily configure the GT10 to automatically format scanner output to meet legacy system reguirements.



Simple Setup with Easy to Use Software

Simple installation setup software included



Type			GT10Q-S (Standard)		GT10Q-H (High-Density)
Model			GT10Q-SR (RS-232C Type)	GT10Q-SU (USB Type)	GT10Q-HR (RS-232C Type)
Scanner	Readable codes	2D codes	QR Code, Micro QR Code, DataMatrix (ECC200), PDF417,MaxiCode, EAN/UCC Composite
		Bar codes	EAN-13/8 (JAN-13/8),UPC-A/E,UPC/EAN (With add-on codes), Interleaved 2 of 5,CODABAR (NW-7), CODE39, CODE93, CODE128 (EAN-128), RSS		EAN-13/8,UPC-A/E,UPC/EAN (With add-on codes), Interleaved 2 of 5, CODABAR (NW-7), CODE39, CODE128 (EAN-128), RSS
	Resolution	2D codes	0.25mm		0.167mm
		Bar codes	0.15mm		0.125mm
	Image capture		0.25mm
	Standard reading position		100mm		10mm
	Marker		Area guide marker
	PCS value		not less than 0.45
	Skew Angle		360°
	Angle		±35°
	Reading confirmation		3-color LED (red, blue and green) buzzer (with volume control), vibrator
Communications	Communication system		RS-232C	USB1.1compliant	RS-232C
	Connector I/F		Dsub-9S	USB TypeA	Dsub-9S
Power	Power suply		original AC adapter	Supplied from the connection target	original AC adapter
Environment Requirements	Drip -proof		IP54
	Shock Resistance		2 m (onto Concrete)
	Temperature		0 - 50°C
	Humidity		10 - 90%RH(without dews)
	Illumination		20 - 10,000lx (Daylight fluorescent light)
Weight (excl. cable)			Approx. 210g
