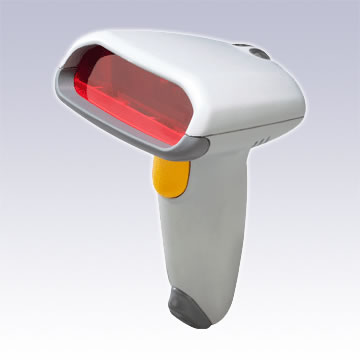

Champ LG-163

Overview:



LG163 is a well-designed economic handheld laser scanner which preserved the characteristics of previous product line with " high performance and most cost effective solution" in the market. Aside from the primary of excellence mechanical designed which implement with ergonomic concept with extra -trigger allowed end-user to operate it efficiently and this is specifically designed for industry usage. Speaking of performance, this scanner is capable of recognizing variety of barcode quality, integrated with unique software program, ISP function, equipped with detachable capable and also 4-in-1 interface. This product coupled with 2 years warranty.

Specifications
Light Source Laser Red 680nm
Operating Voltage DC 5V ±5%
Power Consumption 135mA
Interfaces Combo (WAND Emulation , KBW , RS232 and USB)
Decode Barcode types UPC/EAN/JAN, Code 39, Full ASCII, Code 128, Inteleave 25,
Industrial 25, Matrix 25, CODABAR/NW7, Code 11,
MSI/PLESSEY, Code 93, China Postage, Code 32 / Italian Pharmacy
Dimension 140X90X71 mm
Cable types / Length PS2, RS232, USB, / 5ft.
Weight (without cable) Approx. 135g
Laser Engine XLYQ1031A
Scan Rate 45 sccans/S
Width of Field 650mm
Reading Distance 50cm
Ambient Light 7000 Lux (Sun light)
Color Beige /Black
