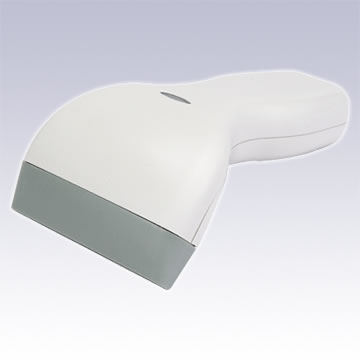

Champ SD-300 CCD Barcode scanner

Overview:



SD300 is a well-designed economic handheld CCD scanner which preserved the characteristics of previous product line with " high performance and most cost effective solution" in the market. Aside from the primary of excellence mechanical design, it has contact reading distance , 80mm reading window, 100 scans/second.

Specifications
Light Source Red LED
Width Of Window 80mm
Depth Of Field 20mm (20mil)
Resolution 0.1mm (4mil) @ PCS 0.9
Ambient Light 3000 Lux Max. (Sunlight)
Voltage DC +5V ±5%
Power Consumption 130mA
Reading Indicator Beeper and LED
Scan Rate 100 scan/sec
Operating Temp 0 °C to 50 °C
Storage Temp -20 °C to 60 °C
Relative Humidity 20% to 85% (Non-Condensing)
Shock 100cm drop on Concrete Surface
Housing Material ABS & Rubber
Interface KBW/RS232/USB
Cable Straight 5 ft.
Connector RJ45 Phone Jack Connector
Weight Approx. 150g
