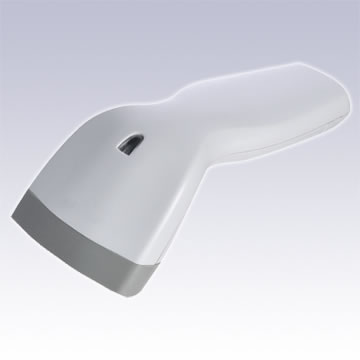

Champ SD-500

Overview:



SD500 is a well-designed handheld CCD scanner which preserved the characteristics of previous product line with " high performance and most cost effective solution" in the market. Aside from the primary of excellence mechanical design, it has contact and middle reading distance, 50mm reading window, 300 scans / second ; detachable cable, 3-in-1 interface.

Specifications
Sensor Linear CCD
Light Source Visible Red light 639nm LED
Width Of Field 50mm from window
Depth of Field 100mm@PCS90% 0.5mm
Resolution 0.1mm (4mil) @ PCS90%
Ambient Light 100,000 Lux Max. (Direct sunlight)
Voltage 5V DC ± 5%
Power Consumption 120mA
Reading Indicator Beeper and LED
Scan Rate 300 Scans/sec ± 10%
Operating Temp 0 °C to 50 °C
Storage Temp -20 °C to 60 °C
Relative Humidity 20% to 85% (Non-condensing)
Shock 100cm drop on Concrete Surface
Housing Material ABS & Rubber
Interface KBW/RS232/USB
Cable Straight 5 ft.
Connector Molex P1.25 11P or Compatible
Weight Approx. 88g
