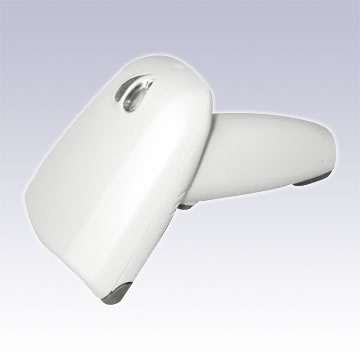

Champ SG-100

Overview:



SG100 rewarded as "Superior Brands Design". This is a compact gun-type CCD scanner implement with ergonomic design allowed end-user to grip comfortably which is designed specifically for female cashiers. Speaking of the performance, this scanner support middle to long reading range, quick-release cable design and integrated with the unique software configuration.

Specifications
Sensor Linear CCD
Light Source Red light 639nm LED
Width Of Window 80mm
Depth Of Field 260mm@PCS90% 0.5mm (20mil)
Resolution 0.1mm (4mil) @ PCS90%
Ambient Light 60,000 Lux Max. (Sunlight)
Voltage DC +5V ±5%
Power Consumption 160mA
Reading Indicator Beeper and LED
Scan Rate 150 scans/sec
Operating Temp 0 °C to 50 °C
Storage Temp -20 °C to 60 °C
Relative Humidity 20% to 85% (Non-Condensing)
Shock 100cm drop on Concrete Surface
Housing Material ABS
Interface KBW/RS232/USB
Cable Straight 5 ft
Connector RJ45 Phone Jack Connector
Weight Approx. 115g
