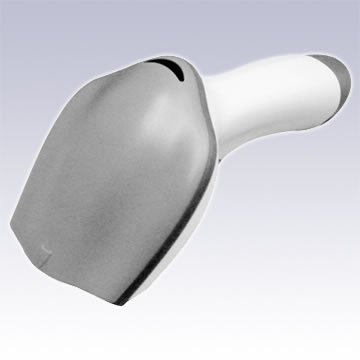

Champ SG-300

Overview:



SG300 rewarded as "Superior Brands Design". This is a high performance gun-type CCD scanner implement with an advantage feature allowed end-user to operate it easily under sunlight. Speaking of the performance, this scanner support long reading range, high scanning speed, quick-release cable design and intergrated with the unique software configuration.

Specifications
Sensor Linear CCD
Light Source Red 639nm LED
Depth Of Field 270mm@PCS90% 0.5mm (20mil)
Resolution 0.1mm (4mil) @ PCS90%
Ambient Light 100,000 Lux Max. (Direct sunlight)
Voltage DC +5V ±5%
Power Consumption 135mA
Reading Indicator Beeper and LED
Scan Rate 300 scans/sec
Operating Temp 0 °C to 50 °C
Storage Temp -20 °C to 60 °C
Relative Humidity 20% to 85% (Non-Condensing)
Shock 100cm drop on Concrete Surface
Housing Material ABS & Rubber
Interface KBW/RS232/USB
Cable Straight 5 ft
Connector RJ45 Phone Jack Connector
Weight Approx. 130g
