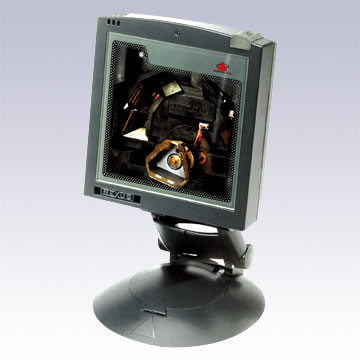

Nexus N-3030

Overview:



· Goldrush pollygon for high performance
· Dense scan pattern
· STAR code fragment reading
· High scan rate 2400 scans/second
· Easy Software Upgrade
· Flexlble Foot design

Specifications

The choice of every retailer


Setting the new benchmark for omni-directional scaning, the Nexus N-3030 takes an unique position in the market. With an unequalled 2480 scans/second and an unique scan pattern of 24 scan lines, the Nexus is the choice of every retailer who wants to optimise counter environment with a winning scanner performance and a great design! The special flexible stand enables the retailer to position the scanner to the wishes of the operator,ensuring an ergonomic use. The Nexus is ideally suited for drugstores, pharmacies, department stores, petrol stations and supermarkets. Special stitching software enables it to read poorly printed and damaged codes, an USB interface connects it to the latest POS-systems and the Nexus is equipped with an EAS deactivation antenna to ensure compatibility to all RF security systems.



Electrical
Power supply voltage 100 – 240 V ac 50/60 Hz (adapter)
DC input to scanner 5.2 V dc 450 mA (at dc-jack)
8 – 16 V dc 3 Watt (direct power)
Interfaces Depending on scanner version:
RS232 and OCIA or
RS485, KBW and USB/USB plus power
Optical
Light source Visible laser diode (630 -670 nm)
Depth of field 300 mm
Scan pattern 7 directions scan field, 24 lines scan pattern
Scan rate 2480 scans / second
Decoding
Bar code types EAN/UPC/JAN + Add-on, code 32 (Ital. Pharmacode)
Code 128, EAN 128, Code 39 (+ full ASCII), Code 93, Codabar, Interleaved 2/5
Physical
Weight 500 g
Weight with stand 675 g
Dimensions H x W x D : 146 x 135 x 61 mm
: 5.75 x 5.35 x 2.40 inch
Dimensions with stand H x W x D : 215-237 x 135 x 135 mm
: 8.47 – 9.34 x 5.35 x 5.31 inch
Environmental
Operating temperature 0° C ~ 40° C
Humidity 20% ~ 95% RH (non-condensing)
Safety
Laser safety IEC 825-1 (1993) Class I, U.S. CDRH: 21CFR1040 Class II a
Electrical safety EN 60950 second edition
UL1950, c-UL (according CSA22.2.950)
Flammability rate 94V-0
EM Compatibility
Radio and TV interference EN 55022 Class B (1998) + A1 (2000), FCC part 15 Class A (1992)
Harmonic current emissions EN 61000-3-2 (1995) + A1 (1998) + A2 (1998)
EM-immunity EMC Directive 89/336/EEC
EN 55024 (1998) + A1 (2001)
