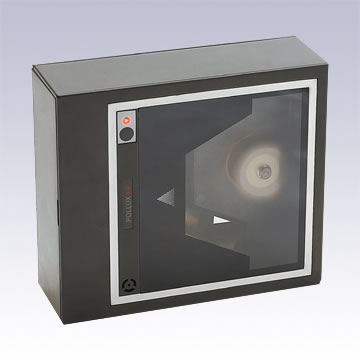

POLLUX P-4010

Overview:



· Goldrush polygon gor high performance
· Dense scan pattern
· STAR code fragment reading
· High scan rate 2000 scans/second
· Easy Software Upgrade

Specifications

The flexible vertical scanning solution


The Pollux is an innovative food retail scanner, optimised for vertical installations. Many retailers enjoy its combination of an unequalled performance and enormous installation flexibility. Furthermore, the Pollux is famous for its unsurpassed quality standard. Before a Scantech scanner gets shipped it has to pass three different quality tests, for this reason Scantech ID scanners are associated with the guarantee of durability. Another great advantage is the EAS compatibility.The Pollux has the largest deactivation field of all vertical scanners in the market. It is also one of the flattest scanners available today, making retrofit installations at existing checkouts even easier.



DC input to scanner Electrical Power supply voltage + 12 V dc, 600 mA 100 - 250 V ac, 50/60 Hz
- 12 V dc, 75 mA
+ 5 V dc, 350 mA
Interfaces Depending on scanner version
Interface port 1: RS232 or IBM RS485
Interface port 2: OCIA or KBW
Auxiliary port Optical Secondary scanner (250 mA max.)
Depth of field Light source 300 mm Visible laser diode (675nm)
Scan pattern 5 directions scan field, 20 lines scan pattern
Scan rate Decoding 2000 scans / second
Bar code types Physical Code 128, EAN 128, Code 39, Code 32, Codabar, ITF EAN/UPC/JAN + Add-on
Dimensions Weight L x W x D: 183 x 210 x 70 mm 1,2 kg: 7.2 x 8.25 x 2.75 inch
Environmental
Operating temperature 0° C ~ 40° C
Humidity 0% ~ 95% RH (non-condensing)
Safety
Laser safety IEC 825-1 (1993) Class I, U.S. 21CFR1040 Class IIa
Electrical safety EN 60950 second edition
UL1950 (third edition), c-UL (according CSA22.2.950-95)
Flammability rate 94V-0
EM Compatibility
Radio and TV interference EN 55022 Class B (1994), FCC part 15 Class A (1992)
Harmonic current emissions EN 61000-3-2 (1995)
EM-immunity EN 50082-1 (1992) based on:
ElectroStatic Discharge (ESD) IEC 801-2 (1991)
Radio frequency immunity IEC 801-3 (1984) / ENV 50140 (1993)
Electrical fast transient IEC 801-4 (1988)
