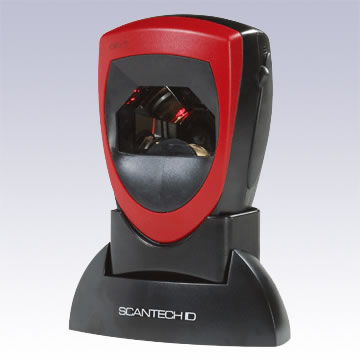

Sirius S-7030

Overview:



· Goldrush polygon for high performance
· Compact and slim size
· Easy Installatino
· High scan rate 1350 scans/second
· Esay Software Upgrade
· Omnidirectional dense scanning pattern
· STAR code fragment reading
· Single line scanning enable

Specifications

The new benchmark in elegant scanning!


The Scantech Sirius scanner combines the demand for table mounted- and hand held scanning. The ergonomic design ensures effortless handling and the sympathetic good looks will automatically enhance any working environment.With 20 scan lines, a scan rate of 1350 scans per second and the latest generation of bar code reconstruction software, the Sirius guarantees the best scan performance in its class. One button operates the ‘ single-line ’ and sleepmode (wake-up) feature. With its triple interface (RS232, KBW and USB), a standard integrated EAS antenna and the easy programming through FLASH, the Sirius is the versatile solution for every point of sale environment. The flexible stand enables you to position the scanner in all directions, for maximum ease of use.The Sirius is available with a dark grey housing and red coloured cap or in light grey with a dark grey coloured cap. The stand comes included.



Electrical
Power supply voltage (optional) 100 – 240 V ac 50/60 Hz (adapter)
DC input to scanner 5.2 Vdc 260 mA or 8 – 16Vdc max 2VA
Interfaces RS-232, KBW and USB/USB plus power
Optical
Light source Visible laser diode (630 -670 nm)
Depth of field Approx. 200 mm / 8 inches (EAN/UPC 100%)
Max range approx. 300mm/12” (EAN/UPC 200%)
Scan pattern 5 directions scan field,
20 lines scan pattern plus
Single Line option
Scan rate 1350 scans / second
Decoding
Bar code types EAN/UPC/JAN + Add-on Code 128
EAN 128
Interleaved 2/5 MSI/Plessey Code 93
Code 39
Code 39 full ASCII
Code 32 (Italian Pharmacode) Codabar
Physical
Weight (scanner only) 225 g
Weight of stand 110 g
Dimensions without stand H x W x D : 122 x 86 x 62 mm
: 4.80 x 3.39 x 2.44 inch
Dimensions with stand H x W x D : 165 x 120 x 85 mm
: 6.50 x 4.72 x 3.35 inch
