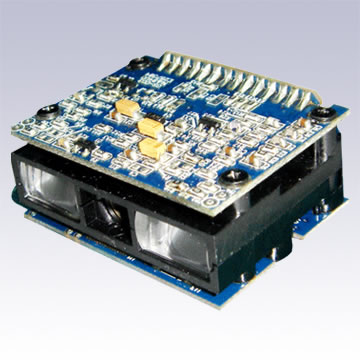

MCR-11-5 CCD OEM Modules

Overview:



MCR11 is a most innovative CCD bar code scanner module which constructed with high quality components only. By enhancing the function of digitizer which generated advance barcode scanning signal to decode the barcode more precisely. Speaking of the performance, this scanner support long reading distance, 500 scans/second, compact size. This product is suitable for any point of working environment which is designed specifically for industry usage with the most cost effective solution in the market.

Specifications
Sensor Linear CCD
Light Source Red LED
Ambient Light 100,000 lux Max. (Sunlight)
Width Of Field 90mm
Depth Of Field 280mm (20mil)
Resolution 0.1mm (4mil) @ PCS 0.9
Voltage DC +5V ±5%
Power Consumption 135mA
Reading Indicator Depends on need
Scan Rate 500 scan/sec
Operating Temp 0 °C to50 °C
Storage Temp -20 °C to 70 °C
Relative Humidity 20% to 85% (Non-Condensing)
Body Meterial ABS
Connector FPC 15pin Pitch 0.5
Weight Approx. 25g
Dimension 38 x 30 x 20 mm
