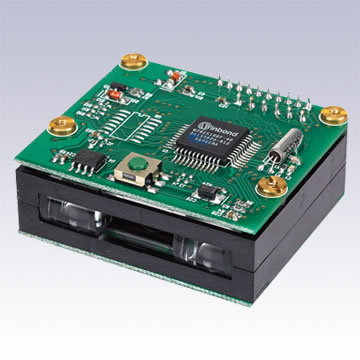

MCR-4 CCDOEM Modules

Overview:



The MCR4 CCD is a most innovative CCD bar code scanner module which constructed with high quality components only. By enhancing the function of digitizer which generated advance barcode scanning signal to decode the barcode more precisely. Speaking of the performance, this scanner which support middle reading distance, 100 scans/second. This MCR4 designed as smallest dimensions which is suitable for any point of working environment with the most cost effective solution in the market.

Specifications
Sensor Linear CCD
Light Source Red LED
Width of Field 55mm (50mmFrom the window)
Depth Of Field 70mm)/20 mil code width
Resolution 0.127mm (5mil)
Ambient Light 3000 lux Max. (Fluorescent Lamp)
Voltage DC +5V ±5%
Power Consumption 130mA
Reading Indicator Beeper
Scan Rate 100 scan/sec
Operating Temp 0 °C to 50 °C
Storage Temp -20 °C to 60 °C
Relative Humidity 20% to 85% (Non-Condensing)
Shock 100cm drop on Concrete Surface
Housing Material ABS
Connector TAE 10pin wafer
Weight Approx. 30g
Dimension 46.90 x 40.70 x 20.95 mm
