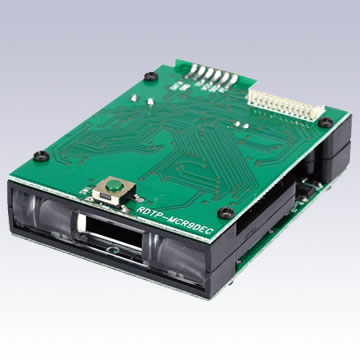

MCR-9 CCD OEM Modules

Overview:



The MCR9 is a most innovative CCD bar code scanner module which constructed with high quality components only. By enhancing the function of digitizer which generated advance barcode scanning signal to decode the barcode more precisely. Speaking of the performance, this scanner support middle to long reading range, 100 scans/second and compact size. This product is suitable for any point of working environment which is designed specifically for industry usage with the most cost effective solution in the market.

Specifications
Sensor Linear CCD
Light Source Red LED
Ambient Light 3000 Lux Max. (Fluorescent lamp)
Width of Field(Focal Plane) 160 mm
Depth Of Field 200 mm (20 mil)
Resolution 0.127mm (5mil)
Voltage DC +5V ±5%
Power Consumption Operation 115mA
Reading Indicator Beeper
Scan Rate 135 scan/sec
Operating Temp 0 °C to 50 °C
Storage Temp -20 °C to 60 °C
Relative Humidity 20% to 85% (Non-Condensing)
Shock 100 cm drop on Concrete Surface
Body Meterial ABS
Connector Molex 11pin wafer
Weight Approx. 265 g
Dimension 59 x 46 x 20 mm
