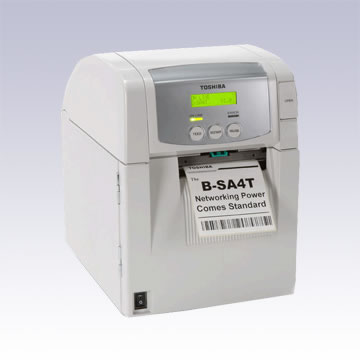

TEC B-SA4TP Standard printers

Overview:



The TOSHIBA Tec B-SA4 barcode label printer provides the functionality and robustness of an industrial printer with the compact footprint and ease of use of a desktop printer.For ultimate networking capabilities, it comes with a wide variety of communication interfaces, enabling you to manage your whole network of printers from a central source.

Specifications

The B-SA4TP comes with a stylish plastic cabinet as well as a sturdy clamshell design for easy media loading. Its ergonomic design makes the B-SA4 the printer of choice for any desktop or light industrial environment. Its superior quality output and exceptional performance ensure that it fits perfectly with robust industrial environments.



This versatile barcode label printer provides all the functionality and robustness of an industrial printer with the compact footprint and ease of use of a desktop printer.



This versatile barcode label printer provides all the functionality and robustness of an industrial printer with the compact footprint and ease of use of a desktop printer. Its large ribbon mechanism is capable of accommodating up to a 3" (75mm) OD ribbon, which is an industry standard for WAX ribbon formulations.



For ultimate networking capabilities, it comes with a wide variety of communication interfaces, enabling you to manage your whole network of printers from a central source.



The B-SA4 comes with an entire Central Network Management Suite that allows you to manage all the SNMP printers in your network.



High print quality: fitted with a 200 dpi print head as standard and with the flexibility to easily upgrade to 300 dpi, these machines are unique in the market.



Available Options include: A Serial Interface Board, a Wireless LAN Module, an Expansion I/O Board, and a Real Time clock.



Specifications

Technology Thermal transfer / direct thermal
Resolution 8 dots/mm (203 dpi); optional 11.8 dots/mm (300 dpi)
Print Width Maximum 104 mm; up to 105.7 mm with 300 dpi printhead
Print Speed Up to 152.4 mm/s (6 ips)
Interfaces Bidirectional parallel port, USB 2.0, LAN (100BASE), serial port*, wireless LAN*
Barcodes UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-code, RSS14, Customer Bar Code
2D Codes Data Matrix, PDF 417, Maxicode, QR code, Micro PDF 417, CP Code
Fonts Bitmap font (21 fonts)
Outline font (4 types)
Price font (3 types)
Optional Cutter module
Strip module
Wireless LAN board, serial interface board
RFID module
300 dpi printhead
RTC (real time clock)
Dimensions 238 mm (W) x 339 mm (D) x 332 mm (H)
Weight 12 kg (without media and ribbon)

* Option
