Overview:

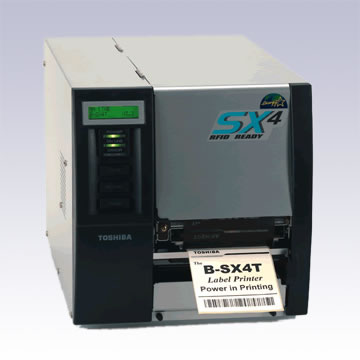

The TOSHIBA TEC B-SX4 and B-SX5 thermal transfer / direct thermal printers extend the tradition of technical innovation of the TOSHIBA TEC high-class industrial printers.
Built to succeed the very popular B-472 and B-572 machines, they provide superior performance and reliability in a variety of industries including manufacturing, chemicals, pharmaceuticals, textiles, electronics and telecoms.
The integrated RFID capability offers flexible options for virtually every RFID need on the labelling market.
Are you printing large volumes of barcode labels, tickets or tags? The B-SX5 provides superb reliability and performance at an incredibly low cost of ownership.
TOSHIBA TEC’s B-SX range does not have factory-fitted RFID read/write units. Depending on the specific RFID component required for a customer-specific solution, TOSHIBA TEC provides the right package to streamline a customer’s operation and provide a rapid Return on Investment.
Constructed from heavy-duty steel, the B-SX5 is ideally suited to any high output application. TOSHIBA TEC has retained all the proven features of the very popular B-572 printer, whilst providing the latest technical innovations in functionality and performance.
With the touch of a button the B-SX5 will be turning out labels almost instantly at speeds up to 205 mm a second due to the continuing advances in processor capacity. TOSHIBA TEC’s innovations in ribbon-motor control also produce ‘REAL’ on-the-fly ribbon save without affecting the print throughput.
Access to printhead, platen, paper path and sensors is now easier with the development of a new wide opening mechanism, making paper loading and cleaning quicker than ever.
Using the very latest printhead technology from Toshiba, the B-SX5 increases the use of in-house components to ensure dazzling print clarity at 306 dpi for the B-SX5.
Specifications
Technology | Thermal transfer / direct thermal |
Print Head | Edge type |
Resolution | 12.05 dots/mm (306 dpi) |
Print Width | Maximum 127.5 mm |
Print Length | Maximum 1,498 mm |
Print Speed | Up to 203.2 mm/s (8 ips) |
Interface | 2 serial ports, bi-directional port, Expansion I/O, PCMCIA I/F*, 10/100 Internal LAN I/F*, USB* |
Barcodes | UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN-128, NW7, MSI, Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-code, RSS14 |
2D Codes | Data Matrix, PDF 417, Maxicode, QR code, Micro PDF 417 |
Fonts | Bitmap font (21 fonts) |
Outline font (7 fonts) | |
Writable characters (132 fonts) | |
Optional TrueType fonts (20 types)* | |
Optional | Swing cutter module, rotary cutter module |
USB interface, built-in LAN board, 2-slot-PCMCIA I/F board | |
RFID kit | |
Dimensions | 291 (W) x 460 (D) x 308 (H) mm |
Weight | 19 kg (without media and ribbon) |
(*) Option
