The B-SX6 wide web printers from Toshiba with RFID functionality and powerful networking deliver outstanding performance for a wide variety of environments and applications. These innovative industrial printers offer advanced features including extremely fast processing, large internal memory, web printer controls, outstanding SNMP networking tools and RFID options.



Utilising ground breaking CPU technology from Toshiba the B-SX6 models offer high-speed printing and enhanced processing via an extensive choice of interfaces.



The 305 dpi, 170.5 mm wide print heads facilitate speedy printing of large format compliance labels.



The optional ribbon save function conserves the ribbon when it is not required, reducing costs, the amount of down-time and allowing optimal performance for RFID encoding work.



For future proofing, the B-SX6 printers are compatible with legacy systems, Toshiba or non-Toshiba.

Software and supplies are compatible with the B-682, B-882, B-672 and B-872 printers.



The BCI (Basic Command Interpreter) can communicate with external devices allowing the easy integration of other technology systems.



The B-SX6 comes with a free Central Network Management Suite that allows the user to manage all the Toshiba printers attached to the network through their IP address.



All of Toshiba’s new generation of thermal printers for the industrial environment are RFID ready



Specifications

Technology	Thermal transfer / Direct thermal
Printhead	Edge type
Resolution	12 dots/mm (305 dpi)
Print Width	Maximum 170.6 mm
Print Length	Maximum 1705 mm
Print Speed	Up to 203 mm/s
Ribbon Save	Option
Interfaces	Bidirectional parallel port, USB 2.0, LAN (100BASE), serial port*, wireless LAN*
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-code, RSS14, Customer Bar Code
2D Codes	Data Matrix, PDF 417, Maxicode, QR code, Micro PDF 417, CP Code
Fonts	Bitmap font (21 fonts), Outline font (4 types), Price font (3 types)
Optional	Cutter module, strip module, ribbon save module (standard on B-SX8), wireless LAN module, serial interface board, expansion I/O board, RTC (real time clock), metal cover**, RFID kit***
Dimensions	416 (W) x 289 (D) x 395 (H) mm
Weight	25 kg (without media and ribbon)

* Option
** Available in Europe only
*** Subject to certification and frequency regulations in each country

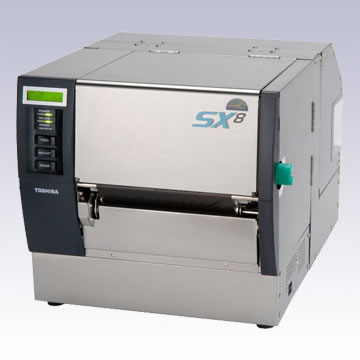

The B-SX8 wide web printers from Toshiba with RFID functionality and powerful networking deliver outstanding performance for a wide variety of environments and applications. These innovative industrial printers offer advanced features including extremely fast processing, large internal memory, web printer controls, outstanding SNMP networking tools and RFID options.



Utilising ground breaking CPU technology from Toshiba the B-SX8 models offer high-speed printing and enhanced processing via an extensive choice of interfaces.



The 305 dpi, 213.3 mm wide print heads facilitate speedy printing of large format compliance labels.



The ribbon save function conserves the ribbon when it is not required, reducing costs, the amount of down-time and allowing optimal performance for RFID encoding work.



For future proofing, the B-SX8 printers are compatible with legacy systems, Toshiba or non-Toshiba. Software and supplies are compatible with the B-682, B-882, B-672 and B-872 printers.



The BCI (Basic Command Interpreter) can communicate with external devices allowing the easy integration of other technology systems.



The B-SX8 comes with a free Central Network Management Suite that allows the user to manage all the Toshiba printers attached to the network through their IP address.



All of Toshiba’s new generation of thermal printers for the industrial environment are RFID ready.



Specifications

Technology	Thermal transfer / Direct thermal
Printhead	Edge type
Resolution	12 dots/mm (305 dpi)
Print Width	Maximum 213.3 mm
Print Length	Maximum 1364 mm
Print Speed	Up to 203 mm/s
Ribbon Save	Standard
Interfaces	Bidirectional parallel port, USB 2.0, LAN (100BASE), serial port*, wireless LAN*
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-code, RSS14, Customer Bar Code
2D Codes	Data Matrix, PDF 417, Maxicode, QR code, Micro PDF 417, CP Code
Fonts	Bitmap font (21 fonts), Outline font (4 types), Price font (3 types)
Optional	Cutter module, strip module, wireless LAN module, serial interface board, expansion I/O board, RTC (real time clock), metal cover**, RFID kit***
Dimensions	416 (W) x 289 (D) x 395 (H) mm
Weight	25 kg (without media and ribbon)

* Option
** Available in Europe only
*** Subject to certification and frequency regulations in each country
