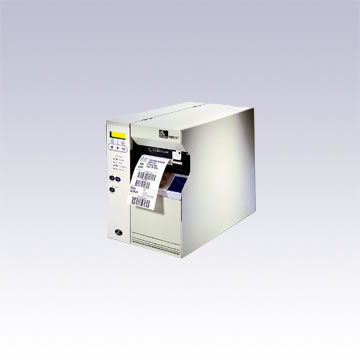

The 105SL offers flexible connectivity solutions including ZebraNet® Wireless Plus Print Server for 802.11b/g wireless connectivity that frees you to move or reconfigure the printer without costly recabling, plus ZebraNet 10/100 Print Server, which offers a complete wired solution for the 105SL when using 10Base-T, 100Base-TX, and fast Ethernet 10/100 auto-switching networks. And with the new ZebraNet™ Bridge, gain the efficiency of centralized printer management.



Standard Features

• Print methods: Thermal transfer or direct thermal
• Construction: Reinforced metal exterior and all-metal components - drives, gears, and spindles
• Transmissive media sensor
• Fast 32-bit processing
• Selectable print speeds up to 8" (203 mm)/second
• Zebra Printer Management
• Standard two-line, 16-character LCD control panel
• Zebra's E3 Printhead Energy Control
• Internal Real-Time Clock

Resolution
203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory

• 6 MB SDRAM
• 4 MB Flash

Print width
4.09" (104 mm)
Print length

• 200 dpi: 106" (2,692 mm)
• 300 dpi (optional): 65" (1,651 mm)

Print speed
203 dpi:
8" (203 mm)/sec
300 dpi:
8" (203 mm)/sec
Media sensors
Transmissive

Maximum label and liner width
.79" (20 mm) to 4.52" (115 mm)
Maximum label and liner length
39" (991 mm)
Maximum roll diameter
8" (203 mm) O.D.
Core diameter
3" (76 mm) I.D. core
Media thickness
.003" (.076 mm) to .012" (.305 mm)
Media types
continuous, die-cut, fanfold, (black-mark optional)

Outside diameter
3.2" (81.3 mm)
Standard length
984' (300 m) to 1,476' (450 m)
Ratio
2:1 and 3:1 media roll to ribbon
Ribbon width

• .79" (20 mm) to 4.5" (114 mm)
• Ribbon is recommended to be at least as wide as media

Ribbon setup
Ribbon wound ink side out
ID Core
1.0" (25.4 mm)

Operating temperature
TT: Operating temperature 40° F (5° C) to 104° F (40° C) Thermal transfer
DT: Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal
Storage temperatures
-40° F (-40° C) to 140° F (60° C)
Operating humidity
20-85% non-condensing R.H.
Storage humidity
5-85% non-condensing R.H.
Electrical

• Universal power supply with factor correction 90-264 VAC
• 48-63 Hz

Agency approvals

• UL 1950
• CISPR 22 (Class B)
• CSA 950
• IEC950
• 801-2, -3 and -4 standards
• Canadian Doc. (Class A)
• FCC (Class A)
• CE compliance

Width
11.2" (283 mm)
Height
15.5" (394 mm)
Depth
19.5" (495 mm)
Weight
55 lbs (25 kg)
Shipping weight
63 lbs (29 kg)

Options

• 300 dpi printhead
• PCMCIA memory slot
• European and Asian font sets
• Media Rewind Spindle (Internal rewind)
• Peel and liner rewind (for print-and-apply)
• Full width cutter with orderable catch tray
• Fan Fold Bin
• Reflective media sensor
• Twinax and coax interfaces
• Factory Installed 64 MB (61 MB user available) Flash Memory Option
• RS-422/485 serial adapter interface
• ZebraNet Print Servers
• BAR-ONE Label Design Software

Communication and Interface Capabilities

• Standard high speed RS-232C/422/485 serial interface
• Centronics IEEE 1284 bi-directional parallel
• Zebra Printer Management (requires optional ZebraNet print servers)
• ZebraNet Wireless Print Server
• ZebraNet 10/100 Print Server
• ZebraNet PrintServer II

Core programming languages
ZPL, ZPL II

Linear
Codabar
Code 11
Code 128 with subsets A/B/C and UCC case codes
ISBT-128
Code 39
Code 93
EAN-13
EAN-8
Interleaved 2-of-5
Industrial 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
2-dimensional
Codablock
Code 49
Data Matrix
MaxiCode
PDF417
QR Code
MicroPDF417
RSS / GS1 DataBar family (12 barcodes)
TLC 39
Aztec
Fonts and Graphics

• Standard fonts: 7 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
• Sets: IBM Code Page 850 International character set
• Supports user-defined fonts and graphics - including custom logos
• ZPL II drawing commands - including boxes, circles, and diagonal lines
