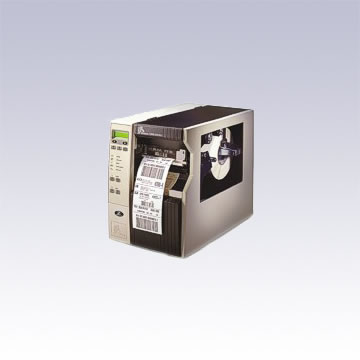

The 140XiIIIPlus gets the job done fast, printing at up to 12" (304.8 mm) per second. With such powerful performance and steel construction, it is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is also well-suited for applications in which labels are required quickly, on demand or in batches.



Standard Features

• Print methods: Thermal transfer or direct thermal
• Construction: 12-gauge steel frame
• ZebraLink Solutions
• Single 32 bit 133 Mhz RISC processor
• 16 MB SDRAM; 4 MB non-volatile Flash memory
• Advanced media/ribbon counter
• Enhanced Alert notification -- monitors printhead condition
• 300 unique darkness settings
• USB 2.0 port
• Serial and parallel ports
• Multilingual backlit LCD display
• PCMCIA socket
• Transmissive and reflective media sensors
• Multi-level Element Energy Equalizer (E3) for superior print quality
• CompactFlash (up to 1 GB memory) for added label format/font storage
• Zebra printer driver for Win 95/98, Win ME, Win NT 4.0, Win 2000, and Win XP
• Unicode™ - Compliant

Resolution
203 dpi (8 dots/mm)
Memory

• 16 MB SDRAM (12 MB available to user)
• 4 MB Flash (2 MB available to user)

Print width
5.04" (128 mm)
Print length
39" (991 mm) maximum
Print speed
12" (305 mm)/sec
Media sensors
Transmissive
Reflective

Maximum label and liner width
1.57" (40 mm) to 5.51" (140 mm)
Maximum roll diameter
8" (203 mm)
Core diameter
3" (76 mm)
Media thickness
.003" (.076 mm) to .012" (0.305 mm)
Media types
continuous, die-cut, black mark

Outside diameter
3.2" (81.3 mm)
Standard length
1,476' (450 m) or 984' (300 m)
Ratio
3:1 and 2:1 media roll to ribbon ratios
Ribbon width
1.57" (40 mm) to 5.1" (130 mm)
Ribbon setup
Ribbon wound ink side out
ID Core
1.0" (25.4 mm)

Operating temperature
TT: Operating temperature 41° F (5° C) to 104° F (40° C) Thermal transfer
DT: Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal
Storage temperatures
-40° F (-40° C) to 140° F (60° C)
Operating humidity
20-85% non-condensing R.H.
Storage humidity
5-85% non-condensing R.H.
Electrical
Universal power supply with power-factor correction 90-264 VAC; 48-62 Hz
Agency approvals

• BSMI
• CCC
• CE
• C-Tick
• cUL
• EN55022 Class B
• EN55024
• EN6100-3-2,3
• FCC Class B
• GOST-R
• ICES-003 Class B
• IEC 60950-1 / EN60950
• NOM
• S Mark
• VCCI
• ZIK

Width
11.15" (283.2 mm)
Height
15.5" (393.7 mm)
Depth
19.5" (495.3 mm)
Weight
55 lbs (25 kg)

Options

• XML-enabled printing
• ZebraNet Print Servers
• IBM Twinax interface
• IBM Coax interface
• Rewind
• Cutter
• Bi-fold media door with clear panel
• Label peel
• Media supply spindle for 40 mm cores
• Scalable and international fonts
• PC cards
• Compact Flash (CF) cards
• Factory installed 64 MB (61 MB user available) Flash Memory option
• Applicator interface
• ZebraDesigner
• ZebraDesigner Pro
• ZebraDesigner for XML

Communication and Interface Capabilities

• USB 2.0 port (480 Mbits per second)
• RS-232C
• RS-422/485 multi-drop (optional adaptor)
• High-speed, bi-directional, IEEE 1284 parallel interface
• ZebraNet Wireless Print Server
• ZebraNet 10/100 Print Server
• ZebraNet PrintServer II
• IBM Twinax interface
• IBM Coax interface
• Applicator interface

Core programming languages
ZPL, ZPL II

Linear
Codabar
Code 11
Code 93
Code 39
EAN-13
EAN-8
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
Code 128 with subsets A/B/C and UCC case codes
ISBT-128
2-dimensional
Codablock
Code 49
Data Matrix
MaxiCode
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
TLC 39
MicroPDF
Aztec
Fonts and Graphics

• Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
• Smooth scalable (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent
• IBM® Code Page 850 International Characters
• Support user-defined fonts and graphics - including custom logos
• ZPL II drawing commands - including boxes, circles, and diagonal lines
