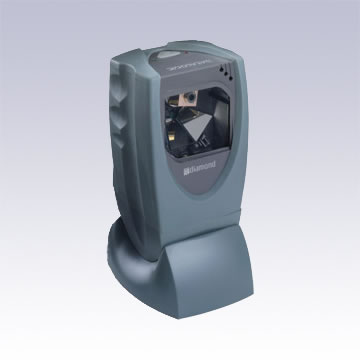

The Diamond reader’s small footprint combined with an optional desktop swivel stand or wall mount allows for a variety of installation options when the product needs to fit in a small or limited space. A single line scan option combined with its ergonomic size allows it to be comfortably used as a handheld reader when needing to scan large or awkward items. When configured in Stand Mode, the Diamond reader minimizes power consumption when it is not active and features an automatic “wake-up” function when a code is detected.



Built-in shock absorbers protect the scan module and motor assembly against abuse and the external housing features soft rubber that cushions the scanner and prevents possible damage caused by accidental drops.



The Diamond reader is offered in a single multi-interface model (USB, Keyboard Wedge and RS-232) to provide flexible host connectivity. Flash memory allows it to be upgraded in the field using the Datalogic Aladdin software utility if new functions or symbologies become available.



Decoding Capability

• 1D / Linear Codes
• Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
• Stacked Codes
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional



Electrical

• Current
• Operating (Typical)
• 390 mA @ 5 VDC
• Input Voltage
• 5 VDC +/- 5%



Environmental

• Drop Resistance
• Withstands repeated drops from 1.0 m / 3.3 ft onto a concrete surface
• ESD Protection (Air Discharge)
• 16 kV
• Humidity (Non-Condensing)
• 5 - 95%
• Particulate and Water Sealing
• IP20
• Temperature
• Operating
• 0 to 40 °C / 32 to 104 °F
• Storage/Transport
• -20 to 70 °C / -4 to 158 °F



Interfaces

• Keyboard Wedge
• RS-232
• USB



Physical Characteristics

• Colors Available
• Grey
• Dimensions
• Scanner and Stand
  9.9 x 7.9 x 6.1 cm / 3.9 x 3.1 x 2.4 in
• Weight
• Scanner and Stand
  280.0 g / 9.9 oz



Reading Performance

• Light Source
• 630 - 680 nm VLD
• Print Contrast Ratio (Minimum)
• 35%
• Read Rate (Maximum)
• 1,200 scans/sec.
• Reading Angle
• Pitch
• +/- 60°
• Roll (Tilt)
• +/- 360°
• Skew (Yaw)
• +/- 60°
• Reading Indicators
• Beeper (Adjustable Tone)
• Good Read LED
• Laser ON
• Resolution (Maximum)
• 0.130 mm / 5 mils
• Scan Lines
• 16



Safety & Regulatory

• Agency Approvals
• The product meets necessary safety and regulatory approvals for its intended use.
• The Quick Reference Guide for this product can be referred to for a complete list of certifications.
• Environmental Compliance
• Complies to EU RoHS
• Laser Classification
• Caution Laser Radiation - Do not stare into beam
• CDRH Class IIa
• EN 60825-1 Class 1



Utilities

• OPOS / JavaPOS
• JavaPOS Utilities are available for download at no charge
• OPOS Utilities are available for download at no charge
