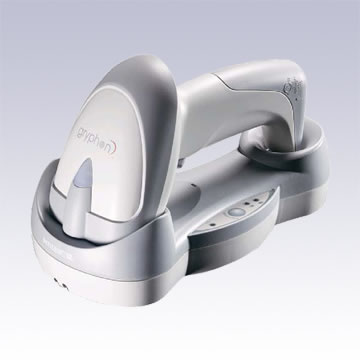

With rich feature sets and extensive model options, the Gryphon product series from Datalogic Scanning represents the premium level of data collection equipment for general purpose applications. Extremely versatile and durable the Gryphon Mobile cordless linear imaging readers are the ultimate solution for applications in retail and light industrial environments where mobility is necessary for improved productivity.



Mobile communications eliminate the restraints caused by cabled devices, providing a safer and more efficient environment for employees. Narrow band radio communications with Datalogic’s STAR Cordless System™ is the key to increased productivity and flexibility in the workplace. It offers scalable solutions from simple point-to-point applications to networking capabilities combined with seamless roaming for complex installations.



The Gryphon Mobile M1X0 models offer standard support for 1D codes including GS1 DataBar. The M230 models add additional symbology support for stacked codes including PDF417 and GS1 DataBar plus EAN/UPC composite codes.



Featuring Datalogic’s exclusive patented ‘Green Spot’ for good read feedback directly on the code; it helps to improve productivity especially in noisy environments. When the readers are used in Stand Mode, the Green Spot remains on to aid in positioning the code for quick and intuitive reading.



Datalogic’s patented PuzzleSolver™ decoding algorithm guarantees outstanding performance on poorly printed or damaged codes and advanced data editing and data formatting modes are available to format the collected data as required by the application software. The Datalogic Aladdin™ configuration program provides user-friendly features that simplify the start-up procedure, even for inexperienced users.



Cordless Communications

• Datalogic STAR Cordless System™
• Effective Radiated Power
• 433.92 MHz
  < 10 mW
• 910 MHz
  < 1 mW
• Multi-Point Configuration
• Max. Readers in Same Area
• 2048
• Max. Readers per Radio Receiver
• 16
• Point-to-Point Configuration
• Radio Frequency
• 433.92 MHz
• 910 MHz
• Radio Range (Open Air)
• 433.92 MHz
  30.0 m / 98.4 ft
• 910 MHz
  15.0 m / 49.2 ft
• Seamless Roaming



Decoding Capability

• 1D / Linear Codes
• Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
• Stacked Codes
• Code 16K
• M2XX
• Code 49
• M2XX
• EAN/JAN Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• MicroPDF417
• M2XX
• PDF417
• M2XX
• UPC A/E Composites
• M2XX



Electrical

• Battery
• Battery Type
• 2 AA NiMh
• Charge Time
• External Power
• 3 Hours
• Reads per Charge
• 40,000
• Cradle Indicator LEDs
• Battery Charging (Red)
• Charge Completed (Green)
• Power/Data (Yellow)
• Current
• Operating (Typical)
• OM Gryphon Cradle
  8 W (Charging)
• Input Voltage
• OM Gryphon Cradle
  9 - 28 VDC



Environmental

• Ambient Light
• 0 - 100,000 lux
• Drop Resistance
• Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
• ESD Protection (Air Discharge)
• 15 kV
• Humidity (Non-Condensing)
• 90%
• Particulate and Water Sealing
• IP30
• Temperature
• Operating
• 0 to 40 °C / 32 to 104 °F
• Storage/Transport
• -20 to 70 °C / -4 to 158 °F



Interfaces

• Keyboard Wedge
• RS-232
• USB
• Wand



Physical Characteristics

• Colors Available
• Black
• Dark Grey
• White
• Dimensions
• 20.8 x 10.7 x 5.6 cm / 8.2 x 4.2 x 2.2 in
• Weight
• OM Gryphon Cradle
  250.0 g / 8.8 oz
• Reader
  280.0 g / 9.9 oz (With Batteries)



Reading Performance

• Imager Sensor
• CCD Solid-state 3648 pixels
• Light Source
• Illumination
• LED Array 630 - 670 nm
• Print Contrast Ratio (Minimum)
• 15%
• Read Rate (Maximum)
• 270 reads/sec.
• Reading Angle
• Pitch
• 65°
• Roll (Tilt)
• +/- 35°
• Skew (Yaw)
• +/- 80°
• Reading Indicators
• Beeper (Adjustable Tone)
• Datalogic 'Green Spot' Good Read Feedback
• Good Read LED
• Resolution (Maximum)
• 0.076 mm / 3 mils



Reading Ranges - Typical Depth of Field

• Minimum distance determined by symbol length and scan angle.
• Printing resolution, contrast, and ambient light dependent.
• 5 mils
• 2.0 to 13.0 cm / 0.8 to 5.1 in
• 7.5 mils
• 1.0 to 18.0 cm / 0.4 to 7.0 in
• 10 mils
• 0.5 to 22.0 cm / 0.2 to 8.6 in
• 13 mils
• 1.0 to 28.0 cm / 0.4 to 11.0 in
• 20 mils
• 2.0 to 37.0 cm / 0.8 to 14.4 in



Safety & Regulatory

• Agency Approvals
• The product meets necessary safety and regulatory approvals for its intended use.
• The Quick Reference Guide for this product can be referred to for a complete list of certifications.
• Environmental Compliance
• Complies to China RoHS
• Complies to EU RoHS
• LED Classification
• IEC 60825 Class 1 LED



Utilities

• Datalogic Aladdin™
• Datalogic Aladdin configuration program is available for download at no charge
• OPOS / JavaPOS
• JavaPOS Utilities are available for download at no charge
• OPOS Utilities are available for download at no charge
