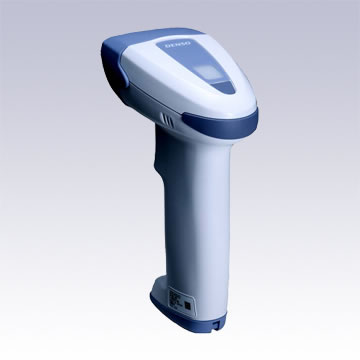

DENSO AT-10Q 2D Code Scanner

Overview:

A New 2D code scanner, equipped with "fulfilling functions" to respond to new needs in the market as well as deeply pursuing "scanning performance" and "handleability"

Specifications

Scanning Performance
Superior scanning performance
Delivers about twice the scanning speed of conventional model(QS20H), as well as scanning of obscured, faint, or marred 2D code.

A high resolution model capable of scanning extra-small barcodes is also available.
Superior scanning performance
Scans a wide range of barcodes
Realizes scanning of wide barcodes such as CODE39 of EIAJ label, CODE128(EAN-128) used in the medical industry, etc.

Built-in various scanning functions
Point scanning mode

Pinpoint scanning on target, even when there are multiple barcodes in the scanning area.
Linked QR code batch scanning mode

Batch scanning of linked QR codes.
Multi-row barcode scanning mode

Simultaneous scanning of　multi-row barcodes.
Ease of use
Highest level of drop resistance in class
Impact -absorbing rubber gives drop resistance ofup to 1.8meters -- the highest level in the class.

Built-in area guide marker
Features the area guide marker indicating the scanning area by laser

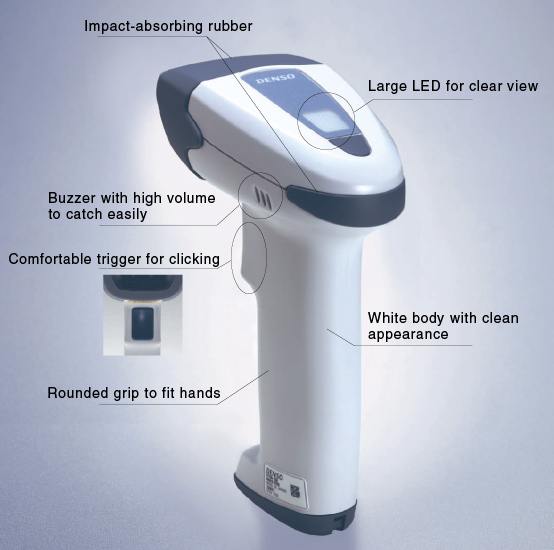

Compact, lightweight body
These scanners are designed from the ground up to be user friendly, from the rounded, compact body, to the large LED and loud buzzer for confirming scans.
Multiple Interfaces
The scanner automatically detects RS-232C and USB cables,enabling you to choose the cable that is best for your host.

Main body	Interface	Summary
	RS-232C	Supports serial communication with superior equipment. Provides users to send and receive various characters such as regular characters, control code, etc.
	USB-COM	Installs exclusive virtual COM port driver(1) on PC and perform virtual serial communication. Provides users to send and receive various characters such as regular characters, control code, etc.
	USB Keyboard	Communicates using a Windows standard driver as a human interface device.(No need installing exclusive drivers.) Supports sending and receiving alphabetic characters, but not 2-bite characters (Chinese, Japanese characters, etc.) or control codes.

Fulfilling functions
Built-in enhanced new functions
Support for simple programming

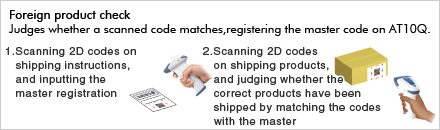

Code matching
Highest level of drop resistance in class
Provides 1 to n, 2-point and 3-point matching.
Data compilation
Supports various data compilation such as scanned data rearrangement, data clipping, etc.
Other

Four arithmetic operations (including residue calculation such as conversion of units, etc.)
String comparison (support for wildcard specification)
LED display, buzzer control, etc.

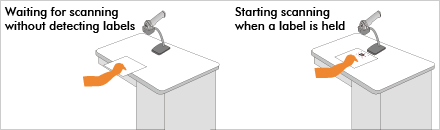

Auto sensor function

Starts scanning automatically when a label is detected.
Image Capture Function
Provides image transfer about 20 times(2) faster than current models in capturing image (QS20H). (When using USB-COM)
Software trigger function
Provides scanning control (scanning on/off) by commanding from superior equipment.
Configuration Software
Easy installation for configuration software
Install method 1

Provides simple parameter setting from PC by using configuration software.
Install method 2

Sets up outputting QR code for batch scanning by using configuration software, and scanning with AT10Q.
AT10Q

AT10Q

Type			Standard type			High density type
Model			AT10Q-SM(R)	AT10Q-SM(U)		AT10Q-HM(R)	AT10Q-HM(U)
Scanner	Readable code	2D code	QR code, MicroQR code, DataMatrix(ECC200), PDF417, MicroPDF417,Maxi code, EAN.UCC Composite
	Readable code	Barcode	EAN-13/8, UPC-A/E,UPC/EAN(with add-on), Interleaved 2 of 5, CODABAR(NW-7)CODE 39, CODE93, CODE128(EAN-128),RSS
	Resolution	2D code	0.25mm			0.167mm
	Resolution	Barcode	0.15mm			0.125mm
	Image Capture		(BMP, JPEG output, thumbnail view
	Marker		Area guide marker
	PCS value		not less than 0.45
	Skew angle		360°
	Angle		±35°
	Scanning confirmation		4 - color LED(Red,Blue,Green, Orange) buzzer (with volume control)
Communications	System		RS-232C		USB(COM,HID)	RS-232C	USB(COM,HID
	Connector		Dsub-9S		USB connector(A type)	Dsub-9S	USB connector(A type)
	Cable		2m
Power			Original AC adapter		Supplied from the connection target	Original AC adapter	Supplied from the connection target
Environment	Water splash resistant		IP×2
requirements	Drop resistance		1.8m×6, 1.5m×30
	Operating temperature		-5°C to 50°C
	Humidity		10 to 90% RH(without dews)
	Illumination		20 to 10,000 lx(Fluorescent lamp in daytime)
Weight			Approx.165g
