Advanced Scanning

Long distance scanning more than 1m with CCD technology.
Reliably scans wide bar code, such as EAN128 logistic label.

High Durability - 2m Drop

World top durability in hand held scanner.

High Durability- Industrial Standard:IP54

Dust/Water-proof standard IP54

Magic Key

Scanning illumination control function

Power ON/OFF control function

GT10B is waiting a scanning when the Magic Key OFF and it will start scanning by Magic Key ON.

Designated character transmission function

GT10B transfers the data which registered beforehand(the job start code,the ID code and so on) by Magic Key ON.

Data retransmission function

GT10B can retransmit the scanning data by Magic Key ON.

feature Functions

Bar code comparison

GT10B is able to compare the scanned bar code with the registered master bar code.

Software trigger function

GT10B is able to operate remotely from a host computer.

Auto-sensing function

GT10B has a auto-sensing function which starts scanning automatically when detect a label.

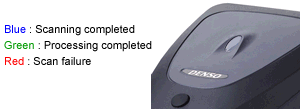

Reading Confirmation

*Vibrator*3 level buzzer volume *Bright LED with 3 colors(blue, green, red)

Setup Software

Setup can be easily done by printing out a one-step setup bar code using this Set-up Software and scanning with GT10.Scanner Setting

Utility Software for Easy Programming

GT10B is readily available by using the QR_kbif keyboard interface software that allows easy programming without the need to create a serial communication program.



Type		GT10B-S(Standard Range Type)			GT10B-L(Long Range Type)
		GT10B-SM(R)	GT10B-SM(K)	GT10B-SU	GT10B-LM(R)	GT10B-LM(K)	GT10B-LU
Scanner	Readable codes	EAN-13/8(JAN-13/8),UPC-A/E,UPC/EAN(With add-on codes),Interleaved 2 of 5,STF,CODABAR(NW-7),CODE39,CODE93,CODE128(EAN-128),MSI,Plessey,RSS14,RSS Limited
	Resolution	0.125mm			0.19mm
	PCS value	not less than 0.45
	Angle	±40°
	Light source	LED
	Reading sensor	Line sensor
	Scanning confirmation	3-color LED (red, blue and green) buzzer (with volume control), vibrator
Communications	Communication system	RS-232C	Keyboard emulation	USB1.1	RS-232C	Keyboard emulation	USB1.1
	Connector I/F	D-sub9 pin (Male)	Mini DIN6P	USB TypeA	D-sub9 pin (Male)	Mini DIN6P	USB TypeA
Input power supply	Power supply	original AC adapter	-	Supplied from the connection target	original AC adapter	-	Supplied from the connection target
	Power consumption	Reading: 200mA max.
Environment Requirements	Drip -proof	IP54
	Shock Resistance	2 m (onto Concrete)
	Temperature	0 to 50°C
	Humidity	10 to 90%RH (without dews)
	Illumination	500 - 10,000lx (Fluorescent lamp in daytime)
Weight(excl. cable)		Approx. 190g
