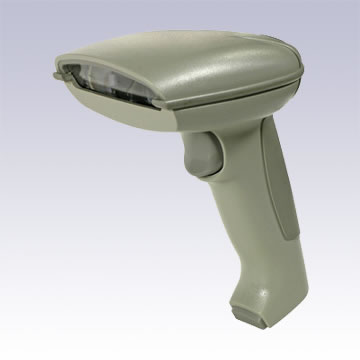

HHP IT-3800LR
Overview:
This handheld imager uses a bright, sharp aiming line with extended reading distance capabilities to deliver exceptional performance in any lighting condition. The IT 3800LR Handheld Imager can read tightly stacked barcode sheets or small, high-resolution labels. It connects to all popular PCs, POS systems, and portable data terminals, and its solid, rugged construction has no internal moving parts. This ensures years of reliable service.
Specifications |
|
Model |
IT3800LR |
Light Source |
630nm visible red LED |
Receiving Device |
3648 element linear imager |
Depth of Field |
1" (2.5cm) to 8" (20.3cm) |
Interfaces |
Keyboard wedge, RS232, undecoded |
Resolution |
5 mil @ 3.5" distance |
Skew Angle |
+(-)30 degrees |
Pitch Angle |
+(-)15 degrees |
Scan Rate |
Programmable to 270 scans/sec. |
Decode Rate |
270 decodes/sec. |
Symbology |
Codabar, Code 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 128, UPC, EAN/JAN, China Postal Code. (PDF417 in 3800 PDF-12 model). |
Reliability |
Exceeds 100,000 hours |
Dimensions |
5.3"L x 6"H x 3.1"W |
Weight |
6.3 oz. |
Power Requirements |
5VDC +(-)10% at scanner |
Mechanical Shock |
Operational after 25 drops from 5 ft. to concrete |
