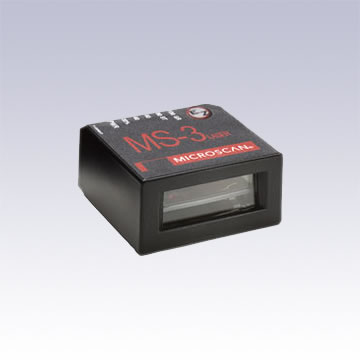

Compact & Lightweight: The 1.75” (44.5 mm) square by .85” (21.6 mm) tall scanner weighs only 2 ounces (57 g) for easy mounting onto robotic equipment or into tight spaces.



High Scan Speed: Adjustable scan speed from 300 up to 1000 decodes per second and Microscan’s world-class decode algorithms ensure accurate reading every time.



Wide Scan Angle: The wide scan angle of over 70 degrees and a factory customizable focal point add up to space savings within your system, allowing greater flexibility with positioning.



Visible Indicators: Illuminated LEDs on top of the scanner provide visual confirmation of the scanner performance.



Real-time Controls: The inputs include a trigger signal, a “new master” input, and a programmable input for resetting counters or releasing outputs. The outputs can be configured to activate upon a variety of conditions including matchcode and diagnostic operations.



Mechanical
Depth: 1.75" (44.5 mm)
Width: 1.75" (44.5 mm)
Height: .85" (21.6 mm)
Weight (standard case): 2 oz. (57 g)



Scanning Parameters
Options: single line, fixed raster
Scan rate: Adjustable from 300 to 1000 scans/second, default=500
Scan width angle: >70°
Pitch: ±50°
Skew: ±40°
Label contrast: 25% min. @ 650 nm



Comunication
Interface: RS-232, RS-422/485 (up to 115.2k), Keyboard Wedge, USB



Connector
Type: 3 ft. cable terminated with High Density 15-pin D-Sub socket connector



Symbologies
Code 39, Codabar, Code 128, I 2 of 5, Code 93, UPC/EAN, Pharmacode, PDF417(option)
