Autofocus: For real time dynamic auto-focus, position the symbol at the center of the field of view, and push the EZ button. The Quadrus MINI automatically adjusts focal distance and sets internal parameters to optimize the symbol.



Megapixel Processing: Each imager features mega-pixel processing for reading multiple small, high density codes, long 1D codes, and decoding up to 100 symbols in a single read capture.



Wide Field of View: Read symbols as large as 2” (50.8 mm) square as close as 1” (25.4 mm) with diffractive field illumination and optional right angle mirror.



Ease of Use: The imager series includes such user-friendly features as visible performance indicators, ESP® software, and one touch setup and configuration.

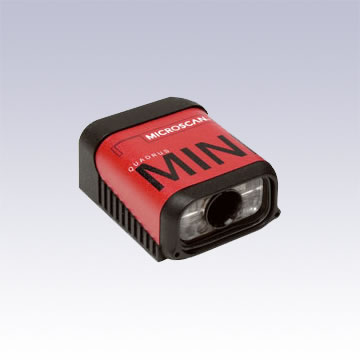

Compact Shape/Size: The Quadrus MINI’s small form factor allows for flexible positioning in tight spaces or mounting into robotic applications.



Mechanical
Height: 1” (25.4 mm)
Width: 1.80” (45.7 mm)
Depth: 2.10” (53.3 mm)
Weight: 2 oz. (57 g)



Light Source
Type: High output LEDs

Light Collection Options
Progressive scan, square pixel. Software adjustable shutter speed, electronic shutter.
SXGA MINI: 1280 by 1024 pixels
QXGA MINI: 2048 by 1536 pixels



Symbology Types
2D Symbologies: Data Matrix (ECC 0-200), QR Code Stacked Symbologies: PDF417, Micro PDF417, GS1 Databar (Composite & Stacked)
Linear Bar Codes: Code 39, Code 128, BC 412, I2 of 5, UPC/EAN, Codabar, Code 93



Read Parameters
Pitch: ±30° Skew: ±30° Tilt: 360°
Decode Rate: Up to 10 decodes per second (SXGA MINI)
Focal Range: 2 to 6” (50.8 to 152.4 mm) (autofocus)



Connector
Type: 3 ft. cable terminated with High Density 15-pin D-Sub socket connector or USB Type A connector



Communication Protocols
Standard Interface: RS-232, RS-422, RS-485, or USB
