• Improves checkout productivity

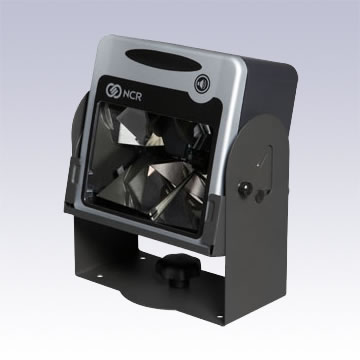

NCR RealPOS Single-Window Scanner features an aggressive, 30-line omni-directional scan pattern that is designed to improve productivity for both new and experienced cashiers.



• Offers an intuitive cashier interface

To make it even easier to use, the cashier interface offers a customizable scan adviser with five bright LEDs, which communicate scanner status and successful scans.



• Provides a robust scanning solution

With an industry-standard footprint and available vertical and hori-zontal mounting options, this single-window scanner also offers a terminal power option and auxiliary RS232 and USB ports for addi-tional connectivity.



• Ensures scan accuracy by recognizing and correcting label defects

With problem labels, the high-performance scan pattern, combined with NCR’s patented Scanner Data Management Tools software, quickly recognizes and corrects label defects.



Technical Specifications



PERFORMANCE
• 6,600rpm motor
• 30-line omnidirectional scan pattern
• 8” depth of field
• Minimum resolution: 4.5mil



POS Interface Opticons:
• RS232, PS/2 keyboard wedge IBM RS485,USB (USB A and USB PlusPower)



Optional Features
• Scanner Data Management Tools
• Sensormatic® Electronic Article Surveillance (EAS) interlock and deactivation coil
• Checkpoint® EAS interlock and integrated antenna
• Horizontal and vertical mounts
• Third-party scale



Symbologies
• UPC/EAN/JAN with 2-digit and 5-digit add-on symbols, Interleaved 2 of 5, Code 3 of 9(39), Code 128, Codabar, Italian Pharmacode
• GS1 DataBar™ (RSS): DataBar Omnidirectional, Stacked Omnidirectional, Expanded, Expanded Stacked
• 2005 Sunrise Compliant



Physical Specifications
• Vertical(W x L x D):
6.0” x 6.0” x 3.4” (15.2cm x 15.2cm x 8.6cm)
• Horizontal w/top plate (WxLxD):
7.5”x 7.5” x 3.5” (19.1cm x 19.1cm x 8.9 cm)
• Adapter kits for 7880, 7882, 7883 checkstand cut-outs



Environmental Specifications
• Operating temperature: 32°F–104°F(0°C–40°C)
• Relative humidity: 5%–95% (non-condensing)
• Compliant Standards: RoHS, WEEE



Power Requirements
• Powered RS232 or USB or external DC power supply (+12v)
• 100-240V, 50-60Hz universal power supply
• 3.3 watts while scanning, 1.8 watts on standby
•Class 1 Laser Product:avoid long-term viewing of direct laser light
