Opticon OPL-6845
Overview:
This small 1D barcode reader features a compact and lightweight design. The OPL6845R scans 100 times per second. This high performance laser scanner provides a fast and accurate scan, even when barcodes are printed with low contrast.

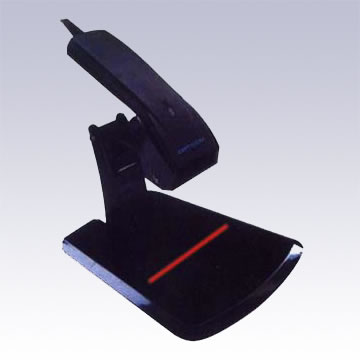

The OPL6845R fits naturally in your hand, however can also be used for hands-free scanning. The integrated auto trigger mode together with the dedicated stand enables hands-free operation, improving productivity of your staff. The large base plate provides a stable position and a clear working spot on the desktop.
Flexible
The OPL6845R uses very little counter space and blends well with other office furniture, as it is available in black and white. The OPL6845R is ruggedized enough withstand drops of 1.5 meter onto concrete.
Plug & play
Available in USB, RS232 and Keyboard Wedge connectivity options, the OPL6845R can be easily integrated into any host computer system as a plug and play device.
| Operating indicators | |
| Visual | 1 LED (red/green/orange) |
| Non-visual | Buzzer |
| Operating keys | |
| Entry options | 1 scan key |
| Communication | |
| RS232 | DB9 PTF connector with external power supply |
| Keyboard Wedge | MiniDIN6 F/M connector |
| USB | Ver. 1.1, HID/VCP, USB-A connector |
| Power | |
| Voltage requirement | 5V ± 10 % (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.5V) (RS232) |
| Current consumption | Max. 250mA |
| Barcode scanner Optics | |
| Light source | 650 nm visible laser diode |
| Scan method | Bi-directional scanning |
| Scan rate | 100 scans/sec |
| Trigger mode | Manual, auto-trigger, stand detection |
| Reading pitch angle | -35 to 0°, 0 to +35° |
| Reading skew angle | -50 to -8°, +8 to +50° |
| Reading tilt angle | -20 to 0°, 0 to +20° |
| Curvature | R>15 mm (EAN8), R>20 mm (EAN13) |
| Min. resolution at PCS 0.9 | 0.127 mm / 5 mil |
| Min. PCS value | 0.45 |
| Depth of field | 40 - 500 mm / 1.57 - 19.69 in (1.0 mm / 39 mil), 20 - 350 mm / 0.79 - 13.78 in (0.5 mm / 20 mil), 20 - 200 mm / 0.79 - 7.87 in (0.25 mm / 10 mil), 20 - 100 mm / 0.79 - 3.94 in (0.15 mm / 6 mil), 30 - 70 mm / 1.18 - 2.76 in (0.127 mm / 5 mil), at PCS 0.9, Code 39 |
| Supported Symbologies | |
| Barcode (1D) | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| Postal code | Chinese Post, Korean Postal Authority code |
| 2D code | Composite Codes, MicroPDF417, PDF417 |
| Durability | |
| Temperature in operation | -5 to 50 °C / -23 to 122 °F |
| Temperature in storage | -20 to 60 °C / -4 to 140 °F |
| Humidity in operation | 5 - 95% (non-condensing) |
| Humidity in storage | 5 - 95% (non-condensing) |
| Ambient light immunity | Fluorescent 3,000 lx max, Direct sun 50,000 lx max, Incandescent 3,000 lx max |
| Drop test | 1.5 m / 5 ft drop onto concrete surface |
| Vibration test | 10 - 100 Hz with 2G for 1 hour |
| Protection rate | IP 42 |
| Physical | |
| Dimensions (w x h x d) | 57 x 159 x 32 mm / 2.24 x 6.26 x 1.26 in |
| Dimensions stand (w x h x d) | 160 x 190 x 245 mm / 6.29 x 7.48 x 9.64 in (excl. scanner) |
| Weight body | Ca. 90 g / 3.2 oz (excl. cable) |
| Weight stand | Ca. 290 g / 10.2 oz |
| Case | ABS, Black or White |
| Regulatory & Safety | |
| Product compliance | CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
