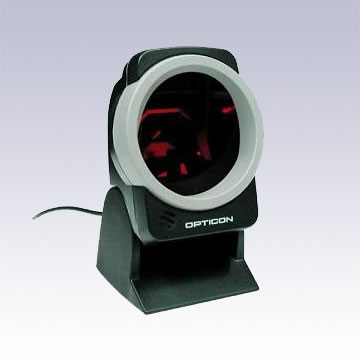

Opticon OPM-2000
Overview:
The OPM2000 belongs to the Opticon family of omni-directional barcode laser scanners. The extremely aggressive scan engine has a reading performance of 1000 scans per second.
Specifications
The OPM2000 is equipped with a built-in stand capable of 60-degree skew angles. This device provides flexibility in reading barcodes with various sizes. The lightweight and rugged body of the scanner also allows usage as a handheld type scanner. The body is sealed up to IP 54 standards and withstands drops up to 1.5 meter.
Flexible
The OPM2000 is standard equipped with Keyboard Wedge, RS232 or USB (HID) connector configurations for easy integration in any host computer system and is available in black and white.
| Operating indicators | |
| Visual | 1 LED (red/green/orange) |
| Non-visual | Buzzer |
| Communication | |
| RS232 | DB9 PTF connector with external power supply |
| Keyboard Wedge | MiniDIN 5/6 F/M connector with external power supply |
| USB | Ver. 1.1, HID, USB-A connector with external power supply |
| Power | |
| Voltage requirement | 5V ± 5% |
| Barcode scanner Optics | |
| Light source | 650 nm visible laser diode |
| Scan rate | 1000 scans/sec |
| Trigger mode | Manual, multiple read, auto-trigger, serial software trigger |
| Reading pitch angle | -50 to 0°, 0 to +50º |
| Reading skew angle | -60 to -8°, +8 to +60° |
| Reading tilt angle | 360° |
| Curvature | R>15 mm (EAN8), R>20 mm (EAN13) |
| Min. resolution at PCS 0.9 | 0.127 mm / 5 mil |
| Min. PCS value | 0.45 |
| Depth of field | 10 - 260 mm / 0.39 - 10.24 in (res. 0.33 mm / 13 mil), 10 - 210 mm / 0.39 - 8.27 in (res. 0.26 mm / 10 mil), at PCS 0.9, EAN13 |
| Supported Symbologies | |
| Barcode (1D) | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, GS1-128 (EAN-128), IATA, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| Postal code | Chinese Post |
| Durability | |
| Temperature in operation | 0 to 40 ºC / 32 to 104 ºF (5 to 40 ºC / 41 to 104 ºF USB interface) |
| Temperature in storage | -20 to 60 ºC / -4 to 140 ºF |
| Humidity in operation | 20 - 85% (non-condensing) |
| Humidity in storage | 20 - 90% (non-condensing) |
| Ambient light immunity | Fluorescent 3,000 lx max, Direct sun 70,000 lx max |
| Antistatic electricity | 15kV (non-destructive) |
| Drop test | 1.5 m / 5 ft drop onto concrete surface |
| Vibration test | 10 - 100 Hz with 2G for 3 hours |
| Protection rate | IP 54 |
| Physical | |
| Dimensions (w x h x d) | 104 x 164 x 115 mm / 4.09 x 6.45 x 4.52 in |
| Weight body | Ca. 480 g / 1 lb 0.9 oz (excl. cable) |
| Case | ABS, Black or White |
| Regulatory & Safety | |
| Product compliance | FCC, CE, IEC 825, Class I laser product |
