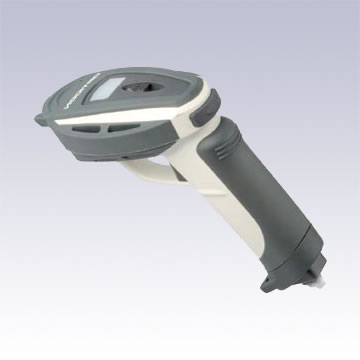

Opticon OPR-3001
Overview:
The OPR3001 is an ergonomic yet lightweight handheld scanner that scans with confidence, delivering reliability and durability in harsh conditions, extreme temperatures and humidity.
This high-performance scanning device features a rubberized pistol grip and trigger guard, sealed up to IP 54 standards for operation in dirty and harsh conditions. The OPR3001, withstanding multiple drops up to 2 meters onto concrete, has been awarded with the Good Design Award. This is Japan's most prestigious industrial design award, from the Japan Industrial Design Promotion Organization.
Flexible
The OPR3001 is designed for aggressive reading of poorly printed and slightly damaged barcodes. A large and bright LED along with an adjustable tone provides a clear indication, especially suitable for operation in low-light and noisy environments. The OPR3001 is available with USB (HID), RS232 and Keyboard Wedge interface options, for easy implementation.
| Operating indicators | |
| Visual | 1 large LED (red/green/orange) |
| Non-visual | Buzzer |
| Operating keys | |
| Entry options | 1 scan key |
| Communication | |
| RS232 | DB9 PTF connector with external power supply |
| Keyboard Wedge | MiniDIN6 F/M connector |
| USB | Ver. 1.1, HID/VCP, USB-A connector |
| Power | |
| Voltage requirement | 5V ± 10% (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.5V) (RS232) |
| Current consumption | Max. 130mA (RS232), max. 125mA (Keyboard Wedge and USB) |
| Barcode scanner Optics | |
| Light source | 650 nm visible laser diode |
| Scan method | Bi-directional scanning |
| Scan rate | 100 scans/sec |
| Trigger mode | Manual, auto-trigger |
| Reading pitch angle | -35 to 0º, 0 to +35º |
| Reading skew angle | -50 to -8°, +8 to +50° |
| Reading tilt angle | -20° to 0º, 0 to +20º |
| Curvature | R>15 (EAN8), R>20 (EAN13) |
| Min. resolution at PCS 0.9 | 0.127 mm / 5 mil |
| Min. PCS value | 0.45 |
| Depth of field | 30 - 590 mm / 1.18 - 23.23 in (1.0 mm / 39 mil), 10 - 360 mm / 0.39 - 14.17 in (0.5 mm / 20 mil), 10 - 200 mm / 0.39 - 7.87 in (0.25 mm / 10 mil), 10 - 90 mm / 0.39 - 3.54 in (0.15 mm / 6 mil), 20 - 60 mm / 0.79 - 2.36 in (0.127 mm / 5 mil), at PCS 0.9 Code 39 |
| Supported Symbologies | |
| Barcode (1D) | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| Postal code | Chinese Post, Korean Postal Authority code |
| 2D code | Composite codes, MicroPDF417, PDF417 |
| Durability | |
| Temperature in operation | -10 to 60 °C / 14 to 140 °F |
| Temperature in storage | -30 to 70 °C / -22 to 158 °F |
| Humidity in operation | 5 - 90% (non-condensing) |
| Humidity in storage | 5 - 90% (non-condensing) |
| Ambient light immunity | Fluorescent 4,000 lx max, Direct sun 80,000 lx max, Incandescent 4,000 lx max |
| Drop test | 2 m / 6.5 ft drop onto concrete surface |
| Vibration test | 10 - 100 Hz with 2G for 30 min |
| Protection rate | IP 54 |
| Physical | |
| Dimensions (w x h x d) | 68 x 155 x 150 mm / 2.68 x 6.10 x 5.91 in |
| Weight body | Ca. 230 g / 8.1 oz (excl. cable) |
| Case | ABS, Black or White |
| Regulatory & Safety | |
| Product compliance | CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
