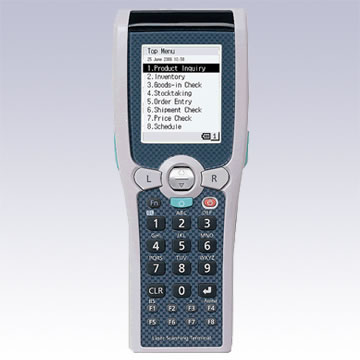

CASIO DT-X5 Industrial Handheld Terminal

Overview:

With easy-to-use hardware features, CASIO's DT-X5 is an ideal data collection terminal for retail, transport and logistics. It is available in two models. Both versions include a laser scanner for the collection of all established 1D barcodes. It can be delivered as a batch or radio terminal for wireless LAN (802.11b). Both models have a powerful processor for sophisticated applications in common. The very sturdy, 250g light MDE device has a pleasant design and is easy to handle. The monochrome graphic display offers excellent readability in all lighting conditions. The data transfer with external devices takes place through the integrated wireless interfaces - Bluetooth and IrDA. Portable label printers can be accessed without a cable connection.

Specifications

DT-X5M30U
CPU		SH-3
Software	OS	Microsoft® Windows® CE.NET 4.1 English version
Memory	RAM	16MB (RAM Disk area approx. 7.5 MB)
Memory	FROM	64MB (User area: Approx. 30MB)
Display	Type	Monochrome FSTN LCD (128 x 160 dots),
	Resolution	128 x 160 dots
	Backlight	LED
	Indicator	2-color (red, green) LED x 2
Input	Keyboard	Numeric (Alphabet) keys, CLR key, Execute key, Cursor key, Power key, Fn key, F1 to F8 keys, Multi key, L, R keys
Input	Trigger Key	2 (left / right )
Scanner	Type	C-MOS imager, 300,000 pixels, monochrome (Redirected downward at 20 degree)
	Resolution	0.15 mm (1D symbologies), 0.169 mm (Stacked 2D symbologies)
	Readable distance	40 to 410 mm (1D symbologies), 50 to 250 mm (Stacked 2D symbologies)
	Readable 1D barcodes	EAN8, EAN13, UPC-A/E, NW-7(CODABAR), CODE11, CODE39, CODE93, CODE128/EAN128, ITF, MSI/Plessy, IATA, RSS-14, RSS Limited, RSS Expanded, ISBT
	Readable 2D barcodes	CODE49, PDF417, MicroPDF, Codablock F, EAN8/13 Composite, RSS Composite, UCC/EAN128 Composite, TLC39, RSS-14 (Stacked), RSS Expanded (Stacked)
Interface	Infrared	IrDA 1.1 compatible (Maximum : 4 Mbps, up to 30cm)
Interface	Bluetooth	Bluetooth® Version 1.1 compatible
Buzzer	Sound Volume	2 sound volumes
Vibrator		Comes as standard
Power	Operation	AA alkaline battery x 2 pcs, Standard battery pack(Lithium-Ion) (HA-A20BAT 1700mAh), Large-capacity battery pack(Lithium-Ion) (DT-5025LBAT 3400mAh)
	Operating period	Approx. 42 hours (AA alkaline battery x 2) Approx. 40 hours (HA-A20BAT Standard battery) Approx. 80 hours (DT-5025LBAT Large-capacity battery) *Based on 2 scans per 10 seconds
	Memory backup	Lithium battery (rechargeable) on board
	Memory backup period	RAM : Approx. 3 days, Clock : Approx. 4 weeks (Assuming that the Lithium battery is fully charged.)
Environment	Drop durability	Approx. 1.8 m Approx. 5.9 feet
	Dust/Water-splash proof	IP54
	Operating temperature	-20°C up to +50°C -4°F up to 122°F
	Storage temperature	-20°C up to +70°C -4°F up to 158°F
	Operating humidity	10% to 80%RH (no condensation)
	Storage humidity	5% to 90%RH (no condensation)
Dimensions	Size	Approx. 179 (D) x 70 (W) x 42.8 (H) mm Approx. 7.05" (D) x 2.76" (W) x 1.69" (H) inch
Dimensions	Grip	Approx. 54 (W) x 21.4 (H) mm Approx. 2.13" (W) x 0.84" (H) inch
Weight		Approx. 245g Approx. 8.64oz / 0.54 lbs
