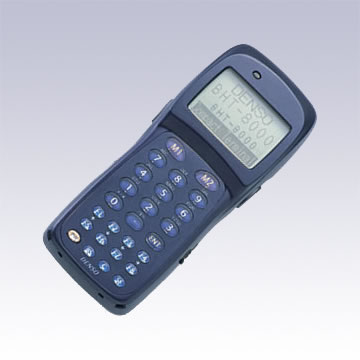

DENSO BHT-8000 Series Handheld Terminal
Overview:
· Sophisticated reading capability facilitates operating efficiency
· Large liquid crystal display provides enhanced visibility
· Adapts to any situation, anywhere, with superior operability
· Ample memory ensures reliable data collection
· Vibration ensures reliable reading confirmation
· Models available
· Built-in Bluetooth ® wireless technology module (BHT-8048DB/ BHT-8148DB )
· Compact, slim body can be used effortlessly for long periods. (BHT-8048DB/ BHT-8148DB )
Specifications
| Model | 8044 | 8044D | 8048D | 8048DB | 8144 | 8148DB | |
|---|---|---|---|---|---|---|---|
| Controller | CPU | 32bit RISC | |||||
| Memory | 4.5MB(user's area2.5MB) |
8.5MB(user's area6.3MB) | 9MB(user's area 6.1MB) |
4.5MB(user's area2.5MB) | 9MB(user's area 6.1MB) |
||
| Display | Display device | Dot-matrix liquid crystal display | |||||
| Size | 128dot x 64dot | ||||||
| Capability | Alphanumeric
& Katakana: 21chars x 8 lines (standard font) 21chars x 10 lines (small font) |
||||||
| Kanji: 8 chars x 4 lines (standard font) 10 chars x 5 lines (small font) | |||||||
| Back light | LED:orange | ||||||
| Scanner | Scanning system | Advanced Scanning System | |||||
| Scanning Area | Maximum 260mm | Maximum 340mm | Maximum 260mm | Maximum 330mm |
|||
| Scanning window width |
39mm | - | |||||
| Scannable codes | EAN-13/-8 (JAN-13/-8), UPC-A/-E,UPC/EAN with add-on, Interleaved 2 of 5, Codabar, Code 39,Code 93, Code 128, EAN-128, Standard 2 of 5 | ||||||
| Scannable codes | 0.10mm | 0.15mm | 0.125mm | 0.15mm | |||
| Scanning direction | Straight | Downward | |||||
| confir- mation |
2 color (red and green) LED, buzzer, vibration | ||||||
| Key Pad | Number of Keys |
24keys (incl. power key) + 2 Magic keys + 2 Trigger Keys | |||||
| Commun- ications |
Optical I/F | Communication system: Infrared (IrDA-SIR Ver.1.2[ Low Power] compliant) | |||||
| Communication speed: 115.2kbps MAX. | |||||||
| Transmission distance: Approx. 0.15m | |||||||
| Standard | - | Bluetooth®Ver1.1 Pawer Class 2 | - | Bluetooth®Ver1.1 Pawer Class 2 | |||
| Wave length |
2.4GHz | 2.4GHz | |||||
| Range | Approx. 5m | Approx. 5m | |||||
| Modulati- onmethod |
Spread spectrum method (frequency hopping) | Spread spectrum method (frequency hopping) | |||||
| Connector I/F | RS-232C (115.2kbps MAX.) | ||||||
| Auxiliary Functions | Calendar clock, Buzzer, Vibration, Resume, Low-battery indication, Remote wake-up | ||||||
| Power Supply | Main battery |
Ni-MH battery cartridge(option) or Two AAA alkaline batteries | |||||
| Operation hours | Nickel hydrogen charger cartridge: 30 hours, AAA alkaline battery: Approx. 80 hours (In case of 2 times bar code readings in 10 seconds) |
Nickel hydrogen charger cartridge: approx. 30 hours, AAA alkaline battery: Approx. 80 hours (In case of 2 times bar code readings in 10 seconds) | Nickel hydrogen charger cartridge: 30 hours, AAA alkaline battery: Approx. 80 hours (In case of 2 times bar code readings in 10 seconds) | Nickel hydrogen charger cartridge: Approx. 30 hours, AAA alkaline battery: Approx. 80 hours (In case of 2 times bar code readings in 10 seconds) | |||
| Nickel hydrogen charger cartridge: Approx. 8 hours, AAA alkaline battery: Approx. 10 hours | Nickel hydrogen charger cartridge: Approx. 8 hours, AAA alkaline battery: Approx. 10 hours | ||||||
| Environ- ment Require- ments |
Operating tempera- ture |
During operation: -5 to 50 deg C, During non-operation: -10 to 60 deg C | |||||
| Drip-proof | JIS drip-proof Type II | ||||||
| Shock Resistance | Dropped from 1.2m above concrete floor, on all 6 faces, 5 times each (total 30 times) | ||||||
| Weight (incl. Battery) | Approx.160g | Approx.160g | Approx.160g | Approx.160g | |||
